Custom Metal Stamping & Die Design and Fabrication
Stamping Material
- Mild steel [CRS SPP, SPCC, EG SECC, GI SGCC]
- Stainless steel [SUS304, SUS303, and SUS316]
- Aluminium [Al6061, Al6063, AL5051]
- Copper [C1100 and C5210]
- Brasss[C2600 and C3600]

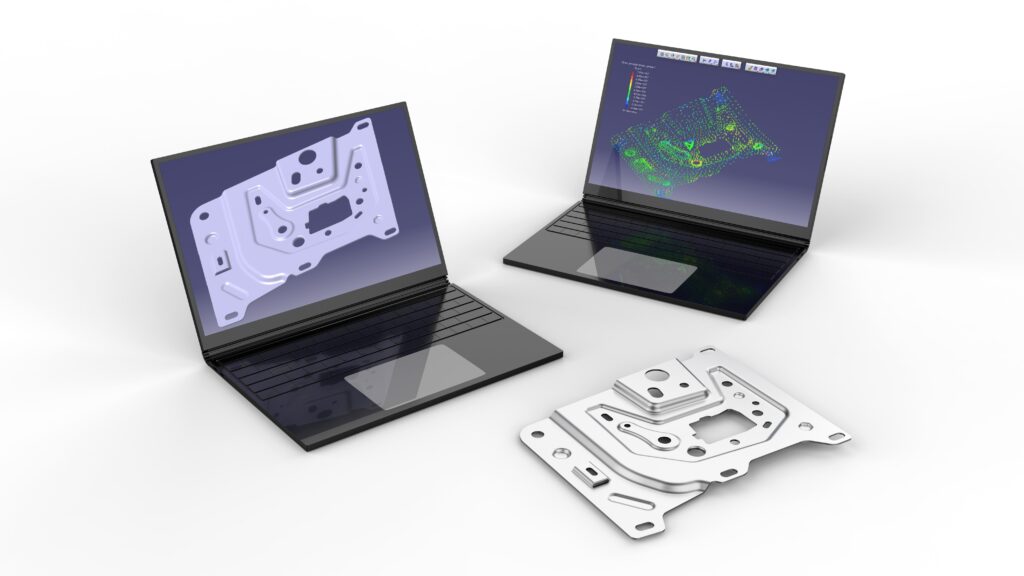

Design Capabilities
The tooling department utilised software AutoCAD and Solidworks for die design and detailed review of part modification for the dimension and layout for CNC machining and wirecut.
Tool Room
We have a tool room equipped with CNC machining and wire cut room for tooling fabrication and tooling maintenance.

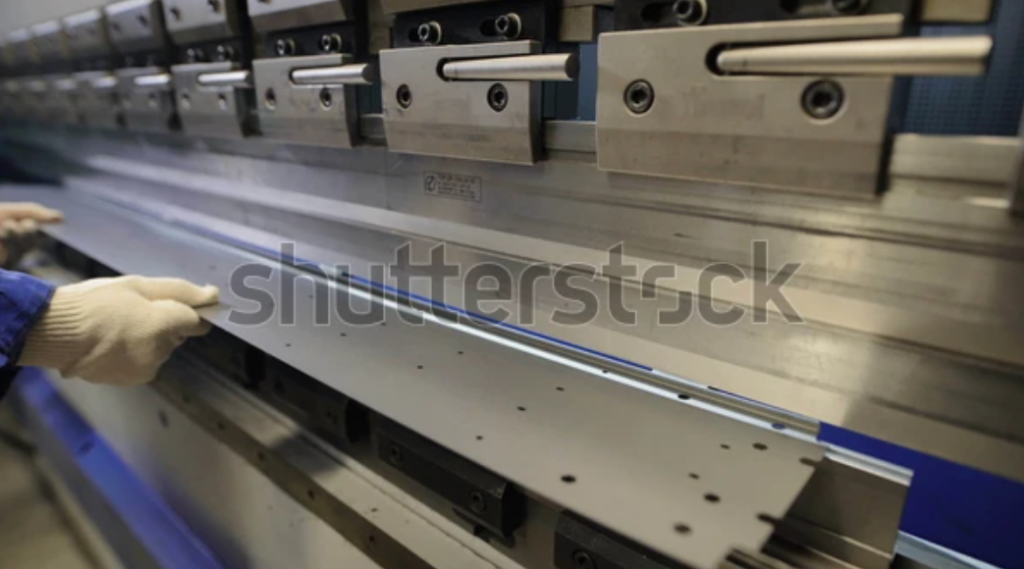

Stamping Machines
We have in-house capacity of over 60 stamping machines that is within the range of 45 – 400 tonnes with several units equipped with the coil feeder and robotic arm for raw materials handling.
Stamping Types
Able to offer the manual process, progressive process, fine blanking process by using servo machines and robotic process. This method is depending on the machine capacity, part design and demands quantity of parts.
Design Capabilities
The tooling department utilised software AutoCAD and Solidworks for die design and detailed review of part modification for the dimension and layout for CNC machining and wirecut.
Tool Room
We have a tool room equipped with CNC machining and wire cut room for tooling fabrication and tooling maintenance.
Parts That Can Be Made Using This Process
An Overview of Our Precision Metal Stamping Process
- Design For Manufacturing (DFM): Our engineering team ensures that both the part and tooling designs are optimized for manufacturability and meet the required specifications. All design proposals are submitted for customer approval prior to fabrication
- Material Selection and Preparation: Tool steel and related die materials are selected based on the mechanical properties of the part’s raw material, particularly tensile strength, wear resistance, and forming characteristics
- Die Fabrication: The die-making process includes CNC machining, EDM, wire cutting, surface grinding and heat treatment, followed by die set assembly to ensure dimensional accuracy and durability.
- Process execution: Using machine stamping with correct tonnage, die height, slide and bolster dimensions ensuring compatibility with the tooling conditions.
- IPQC: Parts are inspected using calibrated instruments such as CMM, callipers and height gauges. Process capability is monitored and reported using statistical indicator such as Cpk to ensure product consistency.
- Maintenance and Tool Life Maintenance: Preventive maintenance schedules for dies are managed using software Tooling Management System (TMS) that ensures consistent tool performance, reduced downtime, and extended tool life.
With this structured and controlled process, we are a trusted service provider of metal stamping in Malaysia, delivering custom metal stamping solutions that exceed industry standard and customer expectations.
An Overview of Our Precision Metal Stamping Process
1. Design for Manufacturing (DFM): Part and tooling design are submitted for customer approval before fabrication.
2. Material Selection: Choose tool steel and die materials based on the approval design.
3. Die Fabrication: Involved CNC machining, EDM, wire cutting, grinding, heat treatment and assembly
4. Stamping Process: Based on tooling size and machine tonnage.
5. In-Process Quality Control (IPQC): Parts are inspected using CMM, calliper and etc during production
6. Tool Maintenance: We use a Tooling Management System (TMS) for scheduled die maintenance
Durability and Endurance
Our machines are capable of processing high tensile strength materials range from 270 to 760 MPa with minimal wear, ensuring long-term durability and consistent performance even under demanding production cycles
High-Volume Efficiency
Our machines are capable of producing durable stamping tools that’s able to handle up to 1 million strokes.
Production Versatility
Flexible production capabilities handle both high mix low volume (Minimum Order Quantity: up to 20pieces per lot) and large-scale runs (Minimum Order Quantity: above 50,000 pieces per lot) for diverse custom metal stamping services.
Frequently Asked Questions (FAQ)
Key factors in ensuring quality of in-house die fabrication related to the software design capabilities utilizing CAD software such as AutoCAD and SOLIDWORKS combined with the expertise of skilled designers and precision machining technologies (EDM, CNC, wirecut and surface grinding) for achieving tight tolerances and reliable performance.
Lead times vary based on part complexity. Typically for die designed at machines stamping between 250 to 400 tonnes, the timeframe for fabrication until T0 testing ranges from 4 to 8 weeks.
Progressive die stamping in Malaysia is ideal for producing complex parts in high volumes. It can achieve UPH up to 2000pcs and allows multiple operations such as punching, bending, and forming to be performed in sequence within a single die, increasing efficiency.
After the custom metal stamping process, we offer a range of secondary services,
Including in-house component assembly, spot and projectile welding, wet paint spray, and silk screen printing to complete your product. We also can offer to outsource surface finishing such as ED coating, powder coating and nickel plating with qualified a subcontractor.
Yes, we have servo press machines that can perform fine blanking, mainly used for automotive parts. This technology allows us to produce parts with clean edges, high accuracy, and less need for extra machining.
